CD-CAD DEMO

CD_CAD is a very friendly user reinforced concrete drawing aid which can draw almost most important details in just a few clicks of a button.

– CD_CAD works with the metric and imperial unit systems.
– CD_CAD works with both the international reinforcement bar system and the US reinforcement bar system.

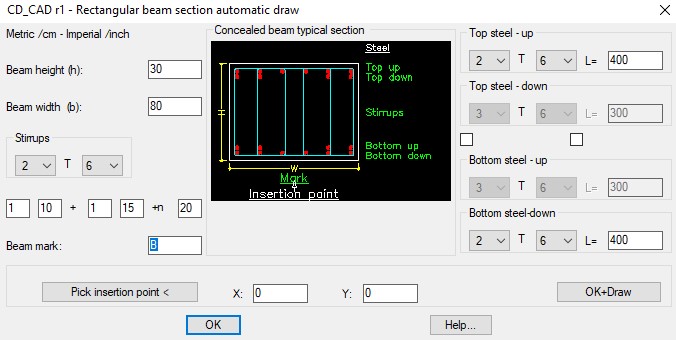

– CD_CAD modules are: RIB section, RECTANGULAR beam section, DROP beam section, ONE SPAN ELEVATION section, TWO SPANS ELEVATION section, THREE SPANS ELEVATION section, MULTI SPAN ELEVATION section, RECTANGULAR COLUMN section, CIRCULAR COLUMN section, MULTIPLE ISOLATED FOOTING table, COMBINED FOOTING section, REATINING WALL section.
– Detailing is arranged in different layers which you can modify at your convenience.
– CD_CAD checks for the data entry before proceeding.
– CD_CAD remembers all values entered and displays them in the next dialog box opening for each module.
